OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM

OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM
OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM
Informasi Dasar
Tempat asal: Shenzhen, Cina,
Nama merek: OPTFOCUS
Sertifikasi: CE & FC
Nomor model: OFSB-5312-03LD
Kuantitas min Order: 1 pasang
Harga: USD 46.99
Kemasan rincian: Paket standar ekspor penjual
Waktu pengiriman: Dalam waktu 3-7 hari setelah mendapatkan pembayaran
Syarat-syarat pembayaran: L/C, T/T, D/A, Western Union, Paypal
Menyediakan kemampuan: 10000 pcs satu bulan
Hubungi sekarang
Status Produk: Saham Sertifikasi: CE,FCC
Nama Produk: Pemancar Optik SFP Jaminan: 1 tahun
Pabrikan: SHENZHEN

OPTFOCUS 1.25G SFP Optical Transceiver OFSB-5312-03LD  SFP Optical Transceiver  BI-BD SM LC 3KM 1550/1310NM



一 SFP Optical Transceiver Details
Model Number: OFSB-5312-03LD Connector:LC
Type: Fiber Optic Transceivers Diagnostics:digital
Place of Origin: Shenzhen, China TX Power(dBm):0~+4
Brand Name: OPTFOCUS Temperature:0°C~70°C
Network:Wired LAN Voltage supply:3.3v
Wavelength:1550/1310NM RX Sens(dBm):<=24
Data Rate:1.25G Use:FTTX
Working Distance:3km Certification:FCC



二 SFP Optical Transceiver Transmitter Characteristics
Parameter Symbol Min. Typ. Max. Units
Optical Transmitter Power P0 6 7.5 11 dBm
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V

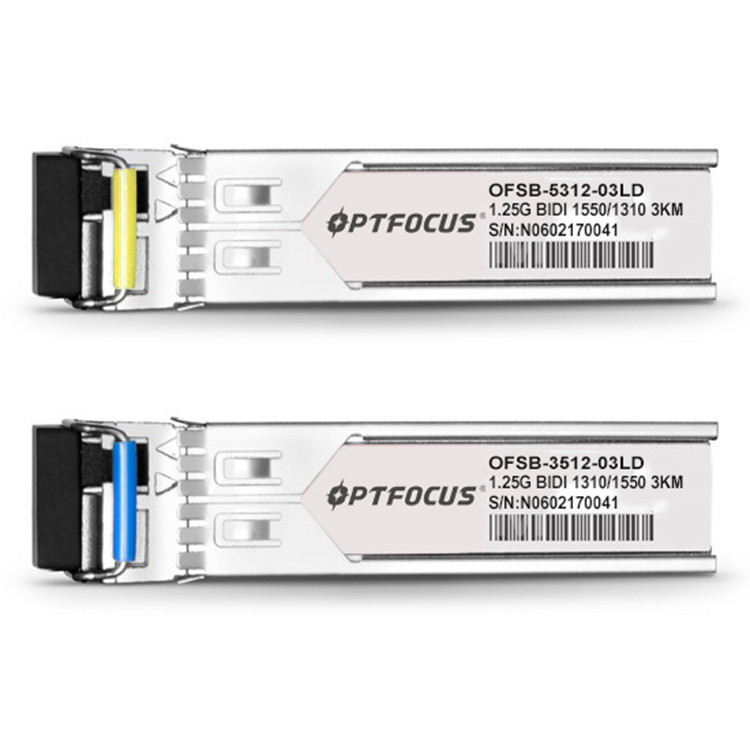

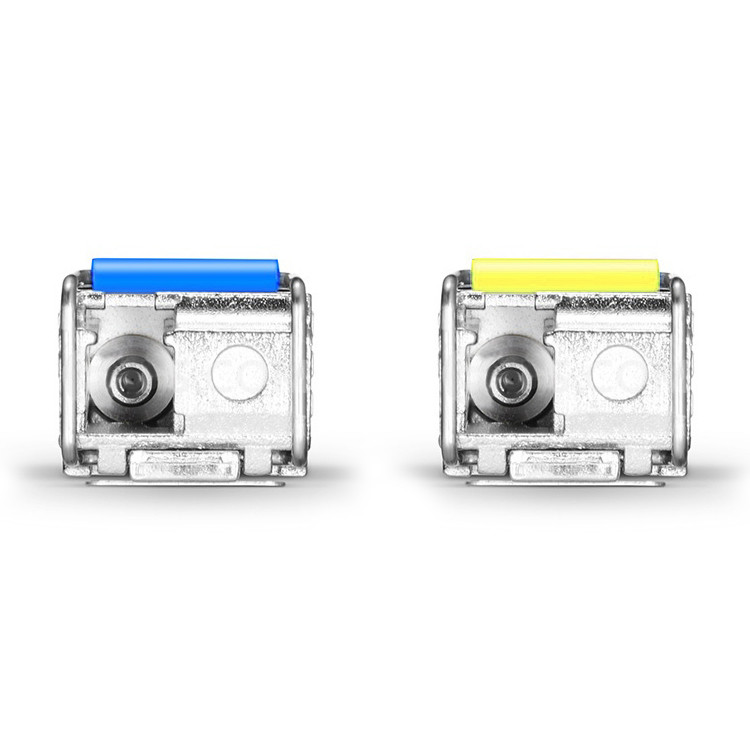

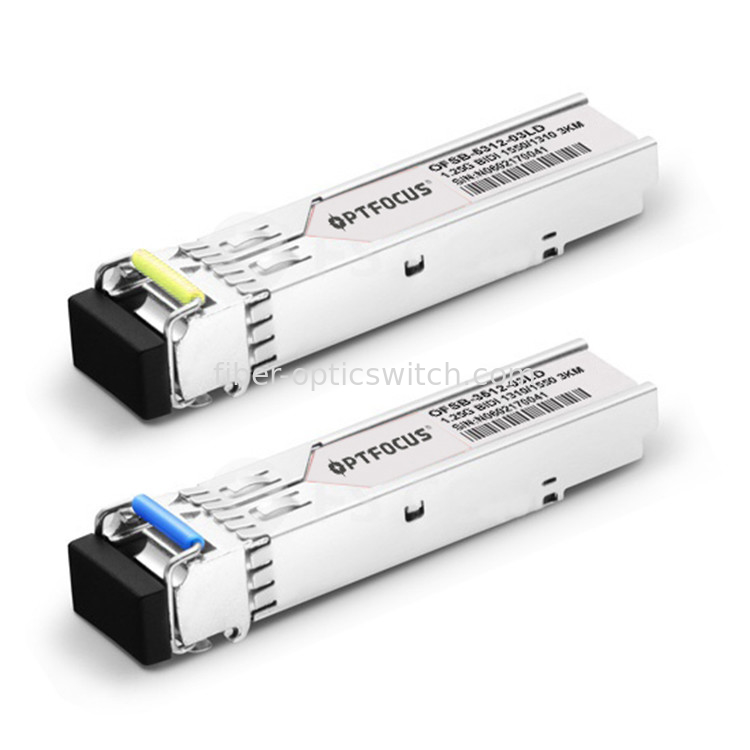

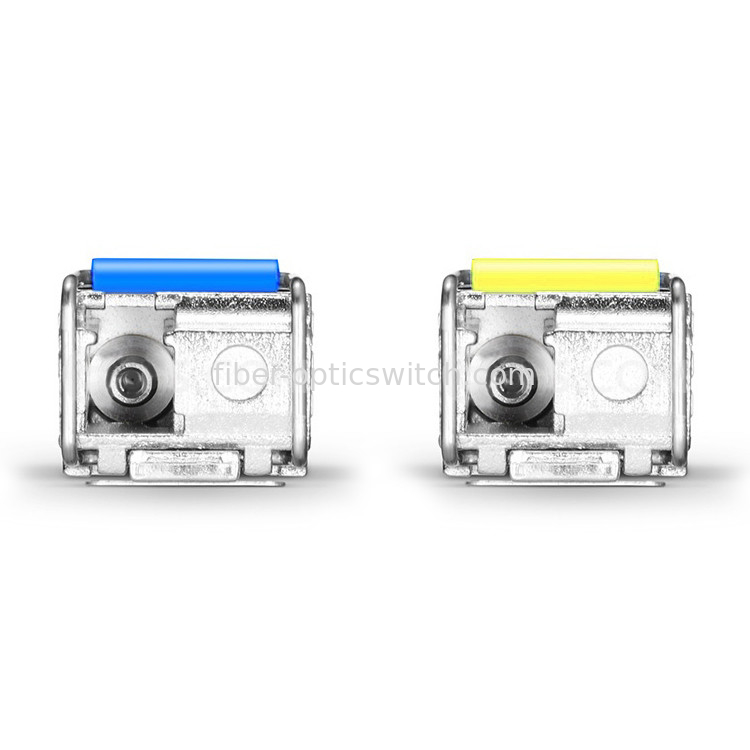

三 SFP Optical Transceiver image details





OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM 0OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM 1



四 Advantage of our company :

①　National High-tech Enterprise integrating with R&D, manufacturing,marketing of FTTH/FTTx Access solutions&products.

②　Fiber Optical Innovative &production team Over 13 years;

③　Fiber optical active and passive components production Workshop;

④　Strict quality management system;

⑤　Professional One stop supply&service;

⑥　OEM&ODM available;

⑦　Reliable and Timely customer services;



OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM 2OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM 3



五  Packaging & Delivery(SFP Optical Transceiver)
Selling Units:Single item Single package size: 0.8X0.3X0.3 cm
Single gross weight:0.100 kg Package Type:carton



六 FAQ

Q:Are you trading company or manufacturer?

A:We are factory.



Q:How long is your delivery time?

A:Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.

Q:Do you have MOQ?

A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.



七  SFP Optical Transceiver Certification

OPTFOCUS SFP Optical Transceiver OFSB-5312-03LD 1.25G 1550/1310NM SFP Optical Transceiver BI-BD SM LC 3KM 4
